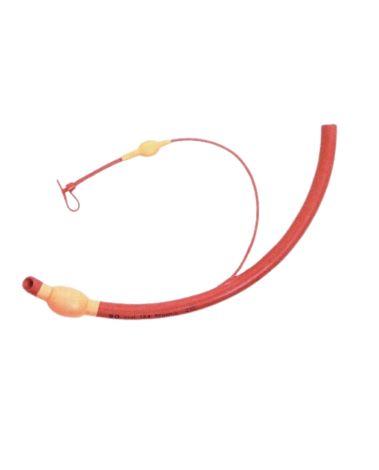

Magill Endotracheal (ET) Tubes
Magill ET Tubes are made from medical-grade red rubber.
✚ Without connector
✚ Various Sizes Available
✚ Sold Individually
The Endotracheal Tube (ET) is inserted through the mouth or nose into the trachea and connected to a ventilation device to secure an airway. The product is intended for single use only.
If you require a size that isn't listed, please contact us with the details as these can be ordered upon request.
Full Size Guide Below:
| ID | OD | A | B | C | D | E | F |
| Minimum Length of Tube | Effective Cuff Length | Cuff Bond Length | Position of Cuff Relative to Heel | Pilot Tube Take Off | Pilot Tube Length | ||
| Tol -0.1 / +0 | *Ref 1 | Tol -0 / +5 | Tol ± 2 | Tol ± 0.5 | Tol ± 1 | Tol -10 / +0 | Tol -0 / +5 |
| 2.5 | 4.0 | 140 | 20 | 5.5 | 6 | 110 | 30 |
| 3.0 | 4.6 | 160 | 20 | 5.5 | 8 | 115 | 45 |
| 3.5 | 5.2 | 180 | 20 | 5.5 | 8 | 121 | 59 |
| 4.0 | 5.8 | 200 | 20 | 5.5 | 8 | 126 | 74 |
| 4.5 | 6.4 | 220 | 24 | 5.5 | 8 | 131 | 89 |
| 5.0 | 7.0 | 240 | 24 | 6.5 | 10 | 136 | 104 |
| 5.5 | 7.7 | 270 | 24 | 6.5 | 10 | 142 | 128 |
| 6.0 | 8.4 | 280 | 29 | 6.5 | 10 | 147 | 133 |
| 6.5 | 9.1 | 290 | 29 | 6.5 | 10 | 152 | 138 |
| 7.0 | 9.6 | 300 | 29 | 6.5 | 12 | 157 | 143 |
| 7.5 | 10.5 | 310 | 34 | 6.5 | 12 | 163 | 147 |
| 8.0 | 11.0 | 320 | 36 | 6.5 | 12 | 168 | 152 |
| 8.5 | 11.7 | 330 | 36 | 6.5 | 12 | 173 | 157 |
| 9.0 | 12.4 | 340 | 36 | 6.5 | 12 | 178 | 162 |
| 9.5 | 12.9 | 350 | 36 | 6.5 | 12 | 184 | 166 |
| 10.0 | 13.4 | 350 | 36 | 6.5 | 12 | 184 | 166 |
| 10.5 | 14.1 | 350 | 36 | 6.5 | 12 | 184 | 166 |
| 11.0 | 14.6 | 350 | 36 | 6.5 | 12 | 184 | 166 |
